DESCRIPTION

Basic Info.

Model NO.	EP-3000kg
Number of Poles	4
Starting Mode	Direct on-line Starting
Certification	ISO9001
Brand	Lts
1500W	Power
3000kg	Lifting
50Hz	Frequency
380V	Volatage
Transport Package	Wooden Box
Trademark	LTS
Origin	China
Production Capacity	50000 Pieces/Year

Product Description

PRODUCT DESCRIPTIONS
LTS explosion proof roller shutter motor is suitable for gas stations,chemical plant and so on where need to door of explosion-proof places.Action button switch can automatically complete the shutter open or closed. In special conditions (power outages, fire and electrical fault ) can be manipulated manual control.

PRODUCT FEATURES / ADVANTAGES / BENEFITS
Stylish design, up-to-date TechnologyOverheat protection and overload protectionLow noiseEasy manual operation when power failurePrecise/accurate Limit switchEasy to install and adjustLow maintenanceSecurity, with anti-fall protection device Long service life, DurableNo spark, antistatic, make it become a practical and safe products

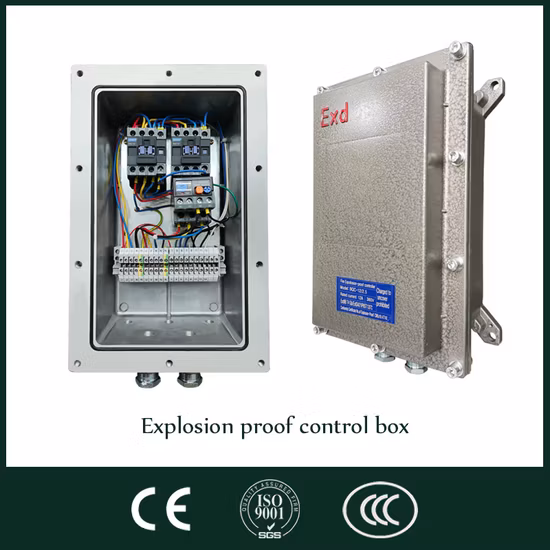

EXPLOSION PROOF CONTORL BOX

TECHNICAL SPECIFICATIONS

Model	Rated voltage / Frequency	Rated Power(W)	Max Lifting (kgs/f)	Rated Current(A)	Rated speed(r/min)	Max lifting height	Ambient temperature range
EP-600-1P	220 V / 50 Hz	370	600	2.2	5.4	6 meters	-20°C ~ +50°C
EP-600-3P	380V / 50 Hz	700	600	1.4	5.4	6 meters	-20°C ~ +50°C
EP-800-3P	380 V / 50 Hz	800	800	1.6	3.9	9 meters	-20°C ~ +50°C
EP-1000-3P	380V / 50 Hz	1000	1000	2	3.9	9 meters	-20°C ~ +50°C
EP-1500-3P	380V / 50 Hz	1200	1500	2.3	3	9 meters	-20°C ~ +50°C
EP-2000-3P	380 V / 50 Hz	1300	2000	2.5	3	9 meters	-20°C ~ +50°C
EP-3000-3P	380V / 50 Hz	1500	3000	5	3.3	12 meters	-20°C ~ +50°C
EP-4000-3P	380 V / 50 Hz	3000	4000	7.8	3.2	12 meters	-20°C ~ +50°C

ADVANCED PRODUCTION TECHNOLOGY AND PROCESS

APPLICATION
LTS explosion proof roller shutter motor is suitable for gas stations,chemical plant and so on where need to door of explosion-proof places. Actionbutton switch can automatically complete the shutter open or closed. In special conditions (power outages, fire and electrical fault ) can bemanipulated manual control.

CERTIFICATIONS
